Google Cloud Storage

The Sumo Logic app for Google Cloud Storage helps you monitor activity in Google Cloud Storage. The preconfigured dashboards provide insight into request locations, bucket and object operations, user activities, errors, and bucket statistics.

Log types

The App uses:

• Google Cloud Audit Logs - Logs events on multiple GCP services, including Cloud Storage.

Sample queries

Created Resources Over Time

_sourceCategory=*gcp* data logName resource "\"type\":\"gcs_bucket\""
| parse regex "\"logName\":\"(?<log_name>[^\"]+)\""
| where log_name matches "projects/*/logs/cloudaudit.googleapis.com%2*"
| json "message.data.resource.labels", "message.data.protoPayload.methodName" as labels, method
| where method matches "*create" or method matches "*delete"
| json field=labels "project_id", "bucket_name", "location" as project, bucket_name, location
| timeslice 1h
| count as operations by _timeslice, method
| transpose row _timeslice column method
| fillmissing timeslice(1h)

Collecting logs for Google Cloud Storage

This page describes the Sumo pipeline for ingesting logs from Google Cloud Platform (GCP) services, and provides instructions for collecting logs from Google Cloud Storage.

Collection Process for GCP Services

The key components in the collection process for GCP services are Google Logs Export, Google Cloud Pub/Sub, and Sumo’s Google Cloud Platform (GCP) source running on a hosted collector.

The GCP service generates logs which are exported and published to a Google Pub/Sub topic through Stackdriver. You will then set up a Sumo Logic Google Cloud Platform source that subscribes to this topic and receives the exported log data.

Configuring collection for GCP uses the following process:

1. Configure a GCP source on a hosted collector. You'll obtain the HTTP URL for the source.
2. Create a topic in Google Pub/Sub and subscribe the GCP source URL to that topic.
3. Create an export of GCP logs from Google Stackdriver Logging. Exporting involves writing a filter that selects the log entries you want to export, and choosing a Pub/Sub as the destination. The filter and destination are held in an object called a sink.

See the following sections for configuration instructions.

note

Logs from GCP services can be exported to any destination including Stackdriver. It is not required to push the GCP logs into Stackdriver for the Sumo Logic Apps to work. Any GCP logs can be excluded from Stackdriver logging and still can be exported to Sumo logic.

Configure a Google Cloud Platform Source

The Google Cloud Platform (GCP) Source receives log data from Google Pub/Sub.

note

You can use the same GCP Source to receive log data from multiple GCP services. For example, you can send logs collected from Google Cloud Application Engine, Google Cloud IAM, and Google Cloud Audit.

However, this is not recommended since you cannot define specific Source Category values to each GCP service. If you create a GCP Source for each service you can define a specific Source Category to each service.

This Source will be a Google Pub/Sub-only Source, which means that it will only be usable for log data formatted as data coming from Google Pub/Sub.

1. Classic UI. In the main Sumo Logic menu, select Manage Data > Collection > Collection.
   New UI. In the Sumo Logic top menu select Configuration, and then under Data Collection select Collection. You can also click the Go To... menu at the top of the screen and select Collection.
2. Select an existing Hosted Collector upon which to add the Source. If you do not already have a Collector you'd like to use, create one, using the instructions on Configure a Hosted Collector.
3. Click Add Source next to the Hosted Collector and click Google Cloud Platform.
4. Enter a Name to display for the Source. A Description is optional.

5. Source Host (Optional). The Source Host value is tagged to each log and stored in a searchable metadata field called _sourceHost. Avoid using spaces so you do not have to quote them in keyword search expressions. This can be a maximum of 128 characters.
6. Source Category (Optional). The Source Category value is tagged to each log and stored in a searchable metadata field called _sourceCategory. See our Best Practices: Good Source Category, Bad Source Category. Avoid using spaces so you do not have to quote them in keyword search expressions. This can be a maximum of 1,024 characters.
7. Fields. Click the +Add Field link to add custom log metadata Fields, then define the fields you want to associate. Each field needs a name (key) and value. Look for one of the following icons and act accordingly:

• If an orange triangle with an exclamation point is shown, use the option to automatically add or enable the nonexistent fields before proceeding to the next step. The orange icon indicates that the field doesn't exist, or is disabled, in the Fields table schema. If a field is sent to Sumo that does not exist in the Fields schema or is disabled it is ignored, known as dropped.
• If a green circle with a checkmark is shown, the field exists and is already enabled in the Fields table schema. Proceed to the next step.

8. Advanced Options for Logs.


• Timestamp Parsing. This option is selected by default. If it's deselected, no timestamp information is parsed at all.
• Time Zone. There are two options for Time Zone. You can use the time zone present in your log files, and then choose an option in case time zone information is missing from a log message. Or, you can have Sumo Logic completely disregard any time zone information present in logs by forcing a time zone. It's very important to have the proper time zone set, no matter which option you choose. If the time zone of logs cannot be determined, Sumo Logic assigns logs UTC; if the rest of your logs are from another time zone your search results will be affected.
• Timestamp Format. By default, Sumo Logic will automatically detect the timestamp format of your logs. However, you can manually specify a timestamp format for a Source. See Timestamps, Time Zones, Time Ranges, and Date Formats for more information.

9. Processing Rules. Configure any desired filters, such as allowlist, denylist, hash, or mask, as described in Create a Processing Rule.
10. When you are finished configuring the Source, click Save.

Configure a Pub/Sub Topic for GCP

You need to configure a Pub/Sub Topic in GCP and add a subscription to the Source URL that belongs to the Sumo Logic Google Cloud Platform Source you created. Once you configure the Pub/Sub, you can export data from Google Logging to the Pub/Sub. For example, you can export Google App Engine logs, as described on Collect Logs for Google App Engine.

1. Create a Pub/Sub Topic in GCP. See Google Cloud documentation for the latest configuration steps.
2. Create a Pub/Sub subscription to the Source URL that belongs to the Sumo Logic Google Cloud Platform Source you created. See Google Cloud documentation for the latest configuration steps.
   • Use a Push Delivery Method to the Sumo Logic Source URL. To determine the URL, navigate to the Source on the Collection page in Sumo Logic and click Show URL.

Limitations

Google limits the volume of data sent from a Topic. Our testing resulted in the following data limits:

Topics	Megabytes per second	Payload size
One	18 MBps (1.5 TB/day)	100 KB
One	6 MBps (0.5 TB/day)	2.5 KB

note

These limits may vary based on your setup and are based on our previous tests.

We recommend the following:

• Shard messages across topics within the above data limits.
• Ask GCP to increase the allowable capacity for the topic.

Create export of Google Cloud Storage logs from Google Logging

In this step you export logs to the Pub/Sub topic you created in the previous step.

1. Go to Logging and click Logs Router.

2. Click Create Sink.

3. As part of Create logs routing sink, add the following information.
4. Enter a Sink Name. For example, "gce-vm-instance".
5. Select "Cloud Pub/Sub" as the Sink Service.
6. Set Sink Destination to the Pub/Sub topic you created in the Google Cloud Platform Source procedure. For example, "pub-sub-logs".
7. In Choose logs to include in sink section for resource_type, replace "<resource_variable>" with "gcs_bucket".
8. Click Create Sync.

Installing the Google Cloud Storage App

Now that you have set up collection for Google Cloud Storage, install the Sumo Logic App to use the pre-configured searches and dashboards that provide visibility into your environment for real-time analysis of overall usage.

To install the app, do the following:

1. Select App Catalog.
2. In the 🔎 Search Apps field, run a search for your desired app, then select it.
3. Click Install App.
   note

   Sometimes this button says Add Integration.

4. Click Next in the Setup Data section.
5. In the Configure section of your respective app, complete the following fields.
   1. Key. Select either of these options for the data source.
      • Choose Source Category and select a source category from the list for Default Value.
      • Choose Custom, and enter a custom metadata field. Insert its value in Default Value.
6. Click Next. You will be redirected to the Preview & Done section.

Post-installation

Once your app is installed, it will appear in your Installed Apps folder, and dashboard panels will start to fill automatically.

Each panel slowly fills with data matching the time range query and received since the panel was created. Results will not immediately be available, but will update with full graphs and charts over time.

Viewing Google Cloud Storage dashboards

All dashboards have a set of filters that you can apply to the entire dashboard. Use these filters to drill down and examine the data to a granular level.

• You can change the time range for a dashboard or panel by selecting a predefined interval from a drop-down list, choosing a recently used time range, or specifying custom dates and times. Learn more.
• You can use template variables to drill down and examine the data on a granular level. For more information, see Filtering Dashboards with Template Variables.
• Most Next-Gen apps allow you to provide the scope at the installation time and are comprised of a key (_sourceCategory by default) and a default value for this key. Based on your input, the app dashboards will be parameterized with a dashboard variable, allowing you to change the dataset queried by all panels. This eliminates the need to create multiple copies of the same dashboard with different queries.

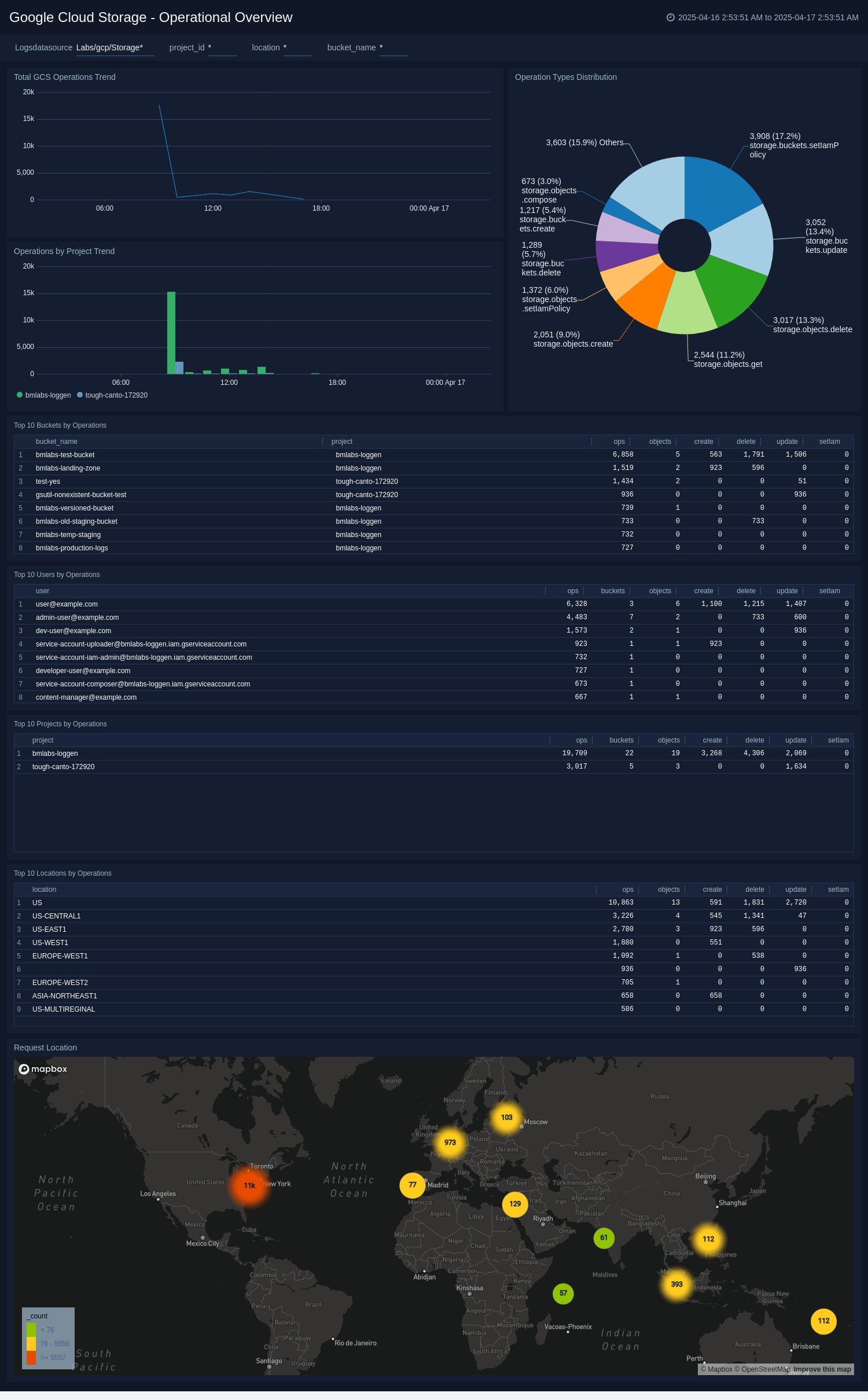

Overview

See an overview of activity in Google Cloud Storage, including a breakdown of bucket and object operations, operations by project, and the top 10 locations, projects, buckets, and users by operation.

Request Location. Shows the number of requests and their location in the last 24 hours on a world map.

Operations. Shows a count of all operations in the last 24 hours on a pie chart.

Operations by Project. Shows trends in operations by project in the last 24 hours on a line graph.

Top 10 Locations by Operations. Shows a table with top 10 locations based on operations in the last 24 hours.

Top 10 Projects by Operations. Shows a table with top 10 projects based on operations in the last 24 hours.

Top 10 Buckets by Operations. Shows a table with top 10 buckets based on operations in the last 24 hours.

Top 10 Users by Operations. Shows a table with top 10 users based on operations in the last 24 hours.

Users

See information about your Google Cloud Storage users, including user locations, user operations, creations and deletions by user, and errors.

Location of Users. Shows the number of users and their location in the last 24 hours on a world map.

User Operations Over Time. Shows the number of user operations over time in the last 24 hours on a column graph.

User Statistics. Shows a table with statistics about users in the last 24 hours.

Creations and Deletions by User. Shows the number of creations and deletions made by the user in the last 24 hours on a column graph.

Operations by User - Outlier. Shows the trends in operations by users based on outliers in the last 24 hours on a line graph.

Recent Object Policy Updates by User. Shows a table with recent object policy updates by users in the last 24 hours.

Top 10 Users by Errors. Shows a table with top 10 users based on number of errors in the last 24 hours.

Recent Errors by User. Shows a table with recent errors by users in the last 24 hours.

Errors by User Over Time. Shows trends in errors encountered by users in the last 24 hours on a line graph.

Location of Users with Errors. Shows the number of users with errors and their location in the last 24 hours on a world map.

Buckets

See information about buckets in Google Cloud Storage, including operations by bucket, bucket statistics, and creations and deletions.

Request Location. Shows the number of requests and their location in the last 24 hours on a world map.

Operations by Bucket Over Time. Shows trends in operations by buckets over time in the last 24 hours on a line graph.

Bucket Statistics. Shows a table with statistics about buckets in the last 24 hours.

Creations and Deletions. Shows the trends in creations and deletions in the last 24 hours on a line graph. This panel also shows the number of creations and deletions in the last 24 hours on a column graph.

Operations by Bucket - Outlier. Shows the trends in operations by buckets based on outliers in the last 24 hours on a line graph.

Operations Over Time. Shows number of operations over time in the last 24 hours on a column graph.

Upgrade/Downgrade the Google Cloud Storage app (Optional)

To update the app, do the following:

1. Select App Catalog.
2. In the Search Apps field, search for and then select your app.
   Optionally, you can identify apps that can be upgraded in the Upgrade available section.
3. To upgrade the app, select Upgrade from the Manage dropdown.
   1. If the upgrade does not have any configuration or property changes, you will be redirected to the Preview & Done section.
   2. If the upgrade has any configuration or property changes, you will be redirected to Setup Data page.
      1. In the Configure section of your respective app, complete the following fields.
         • Key. Select either of these options for the data source.
           • Choose Source Category and select a source category from the list for Default Value.
           • Choose Custom and enter a custom metadata field. Insert its value in Default Value.
      2. Click Next. You will be redirected to the Preview & Done section.

Post-update

Your upgraded app will be installed in the Installed Apps folder, and dashboard panels will start to fill automatically.

note

See our Release Notes changelog for new updates in the app.

To revert the app to a previous version, do the following:

1. Select App Catalog.
2. In the Search Apps field, search for and then select your app.
3. To version down the app, select Revert to < previous version of your app > from the Manage dropdown.

Uninstalling the Google Cloud Storage app (Optional)

To uninstall the app, do the following:

1. Select App Catalog.
2. In the 🔎 Search Apps field, run a search for your desired app, then select it.
3. Click Uninstall.
