Create a Metrics Query and Chart

note

This topic pertains to our Classic Metrics UI (Legacy). For information about the Metrics Explorer UI, which replaces the Classic Metrics UI, see Metrics Explorer.

The metrics visualization area is in the upper part of the page and the query area is in the lower part of the page.

page

Create a metrics visualization

  1. Click + in the tab bar and select Metrics.

  2. Create your query or queries in the Query tab, which opens by default when you open the Metrics page.

    page

    Create up to six metrics queries, with each including a combination of the following:

    • Sequence of space-separated tag=value pairs.
    • Unqualified strings (value with no key).
    • Functions (displayed with | symbol).
    • Aggregation by specified parameters (displayed with | symbol).
    • Logical operators (AND, OR, and NOT/!)

    Example 1 (one query): metric=CPU_Idle

    Example 1 (one query with aggregation): cluster=search node=search-1 metric=cpu-system | avg by node

    Example 2 (two queries) _sourceCategory=tara_cloudwatch_aws_logs_2 metric=CPU_Idle

    Example 3 (one query, using NOT to visualize all nodes except search-1): cluster=search !node=search-1 metric=cpu-system | avg by node

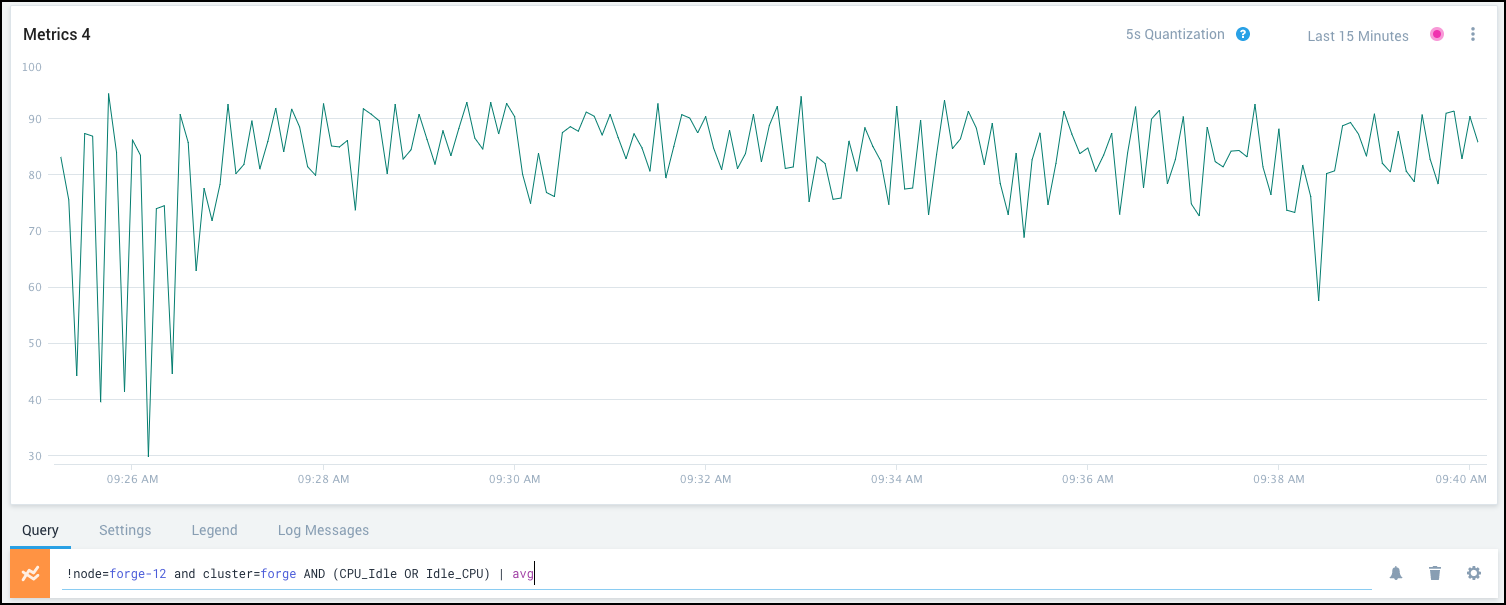

![image3.png](/img/metrics/metrics-query-tab.png)

For more information, see [Guidelines for Metrics Queries](/docs/metrics/metrics-queries/metrics-queries-classic).
  1. Press Enter in any of the entry fields to display the data in the data visualization area. See Interacting with Metric Charts to learn how to interact with the visualization and modify settings.
    metrics_first chart.jpg

Limitations

If your query matches more than 1000 time series, you might see a message indicating that you need to adjust your query to reduce the number of time series. For more information, see Too Many Time Series Messages.
