Cisco IOS XE

cisco-ios-xe

Version: 1.1
Updated: Jul 06, 2023

Utilize and manipulate ACLs and Interfaces with Cisco IOS XE.

Actions​

  • Get ACLs (Enrichment) - Gather available ACLs.
  • Get ACL (Enrichment) - Gather information on a specific ACL.
  • Get Interfaces (Enrichment) - Gather all available interfaces.
  • Get Interface (Enrichment) - Gather information on a specific interface.
  • Get Interface Oper (Enrichment) - Gather a specific interface name.
  • Get Interfaces Oper (Enrichment) - Gather all interface names.
  • Add ACL (Containment) - Add a new ACL.
  • Update ACL (Containment) - Update an existing ACL.
  • Enable Interface (Containment) - Enable an interface.
  • Disable Interface (Containment) - Disable an interface.

Configure Cisco IOS XE in Automation Service and Cloud SOAR​

Before you can use this automation integration, you must configure its authentication settings so that the product you're integrating with can communicate with Sumo Logic. For general guidance, see Configure Authentication for Automation Integrations.

How to open the integration's configuration dialog
  1. Access App Central and install the integration. (You can configure at installation, or after installation with the following steps.)
  2. Go to the Integrations page.
    Classic UI. In the main Sumo Logic menu, select Automation and then select Integrations in the left nav bar.
    New UI. In the main Sumo Logic menu, select Automation > Integrations. You can also click the Go To... menu at the top of the screen and select Integrations.
  3. Select the installed integration.
  4. Hover over the resource name and click the Edit button that appears.

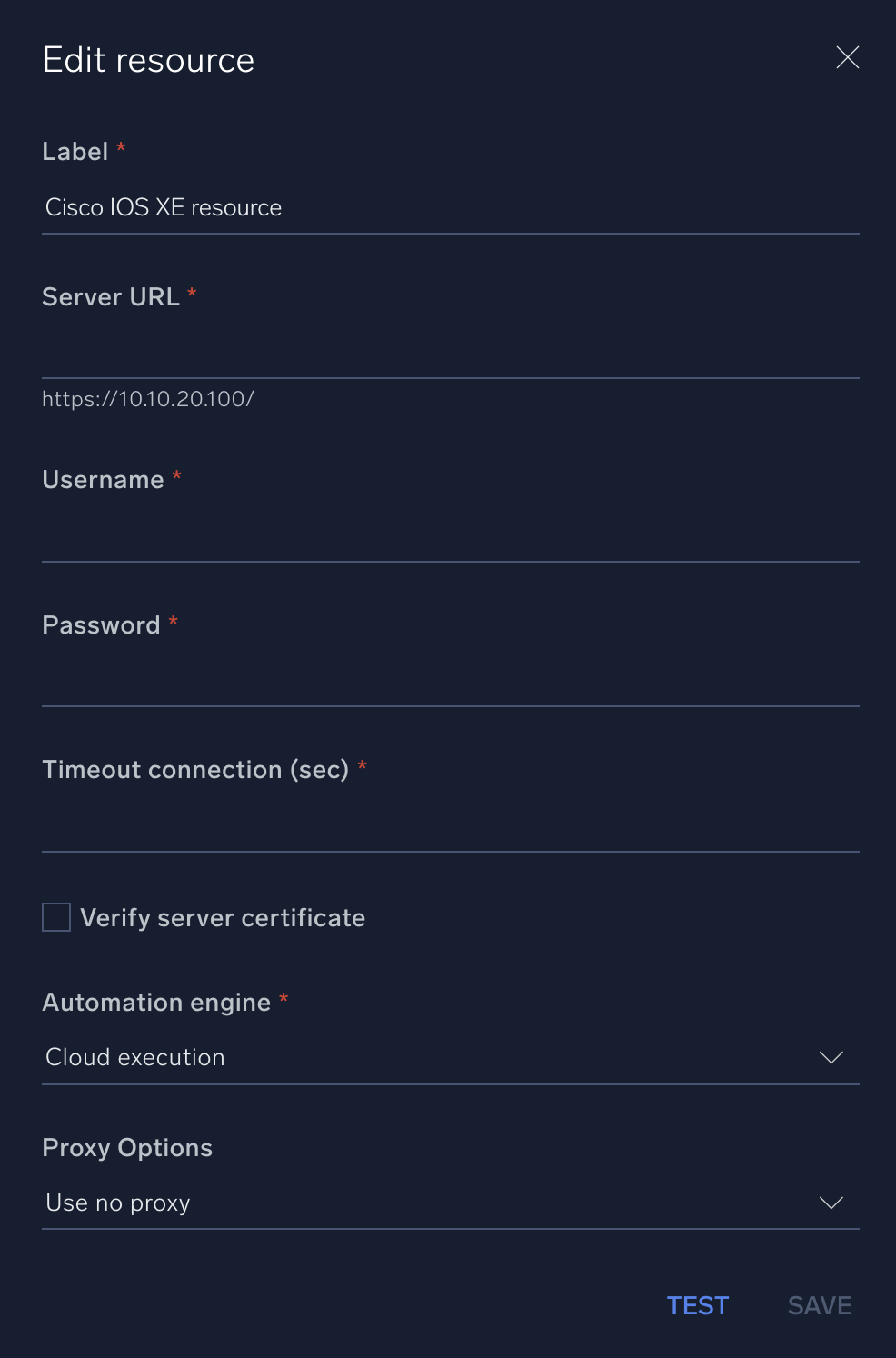

    Edit a resource

In the configuration dialog, enter information from the product you're integrating with. When done, click TEST to test the configuration, and click SAVE to save the configuration:

  • Label. Enter the name you want to use for the resource.

  • Server URL. Enter your Cisco IOS XE server URL.

  • Username. Enter the username of a Cisco IOS XE admin authorized to provide authentication for the integration.

  • Password. Enter the password for the Cisco IOS XE admin user.

  • Connection Timeout (s). Set the maximum amount of time the integration will wait for a server's response before terminating the connection. Enter the connection timeout time in seconds (for example, 180).

  • Verify Server Certificate. Select to validate the server’s SSL certificate.

  • Automation Engine. Select Cloud execution for this certified integration. Select a bridge option only for a custom integration. See Cloud or Bridge execution.

  • Proxy Options. Select whether to use a proxy. (Applies only if the automation engine uses a bridge instead of cloud execution.)

    • Use no proxy. Communication runs on the bridge and does not use a proxy.
    • Use default proxy. Use the default proxy for the bridge set up as described in Using a proxy.
    • Use different proxy. Use your own proxy service. Provide the proxy URL and port number.
Cisco IOS XE configuration

For information about Cisco IOS XE, see Cisco IOS XE documentation.

Change Log​

  • September 17, 2019 - First upload
  • July 6, 2023 (v1.1) - Updated the integration with Environmental Variables
