Microsoft EWS (Graph)

microsoft-ews

Version: 1.0
Updated: Sep 10, 2025

Perform actions on Microsoft EWS mailboxes and accounts using Graph API.

Actions​

  • Get Attachments (Enrichment) - Get an email attachment.
  • Get Contacts (Enrichment) - Get all contacts for a mailbox.
  • Get Searchable Mailboxes (Enrichment) - Multiple new fields to search mails.
  • Get Out Of Office (Enrichment) - Get out of office message for a mailbox.
  • Search Emails Extended (Enrichment) - Search emails with multiple new fields to search mails.
  • Copy Email (Containment) - Copy email to a new destination.
  • Delete Attachments (Containment) - Delete an attachment.
  • Delete Email (Containment) - Delete an email.
  • Download Mail As EML (Enrichment) - Save the whole email as EML format in incident attachments / objects.
  • Forward Mail (Containment) - Forward the email.
  • Send Email (Notification) - Send an email.
  • Reply To Email (Notification) - Reply to an email with a given item ID.

Microsoft EWS configuration​

Each application for which you want the Microsoft identity platform to perform identity and access management (IAM) needs to be registered. Registering it establishes a trust relationship between your application and the identity provider, the Microsoft identity platform.

Register an application​

Registering your application establishes a trust relationship between your app and the Microsoft identity platform. The trust is unidirectional. Your app trusts the Microsoft identity platform, and not the other way around.

Follow these steps to create the app registration:

  1. Sign in to the Azure portal.
  2. If you have access to multiple tenants, use the Directory + subscription filter
    Click /microsoft-ews in the top menu to select the tenant in which you want to register an application.
  3. Search for and select the Azure Active Directory.
  4. Under Manage, select App registrations > New registration.
  5. Enter a Name for your application. Users of your app might see this name, and you can change it later.
  6. Select Register to complete the initial app registration.
  7. Don't enter anything for Redirect URI (optional).
    /microsoft-ews

When registration completes, the Azure portal displays the app registration's Overview pane, which includes its Application (client) ID. Also referred to as just client ID, this value uniquely identifies your application in the Microsoft identity platform.

The client ID as one aspect in validating the security tokens it receives from the identity platform.
/microsoft-ews

Add credentials​

Credentials are used by confidential client applications that access an API. Examples of confidential clients are web apps, or service- and daemon-type applications. Credentials allow your application to authenticate as itself, requiring no interaction from a user at runtime.

You can add client secrets (a string) as credentials to your confidential client app registration.


/microsoft-ews

Add a client secret​

The client secret, known also as an application password, is a string value of your app.

  1. Select your application in App registrations in the Azure portal.
  2. Select Certificates & secrets > New client secret.
  3. Add a description for your client secret.
  4. Select a duration.
  5. Select Add.
  6. Record the secret's value for use in your client application code - it's never displayed again after you leave this page.

Add permissions to API​

  1. Select your application in App registrations in the Azure portal.
  2. Select API permissions > Add a permission.
  3. Application permissions are for service- or daemon-type applications that need to access API as themselves, without user interaction for sign-in or consent. Unless you've defined application roles for your API.
  4. Select Add a permission, and add the following permissions:
    /microsoft-ews

EWS API to be configured for these permissions​

Applications are authorized to call APIs when they are granted permissions by users or administrators as part of the consent process. The list of configured permissions should include all the permissions the application needs.

API / Permissions

Microsoft Graph (7)

  • Contacts.Read
    • Type: Application
    • Description: Read contacts in all mailboxes
    • Admin: -
  • Mail.Read
    • Type: Application
    • Description: Read mail in all mailboxes
    • Admin: Yes
  • Mail.ReadBasic
    • Type: Delegated
    • Description: Read user basic mail
    • Admin: -
  • Mail.ReadBasic
    • Type: Application
    • Description: Read basic mail in all mailboxes
    • Admin: Yes
  • Mail.ReadBasic.All
    • Type: Application
    • Description: Read basic mail in all mailboxes
    • Admin: Yes
  • Mail.Send
    • Type: Application
    • Description: Send mail as any user
    • Admin: Yes
  • MailboxItem.Read.All
    • Type: Application
    • Description: Read all the users' mailbox items
    • Admin: Yes

Office 365 Exchange Online (3)

  • Exchange.ManageAsApp
    • Type: Application
    • Description: Manage Exchange As Application
    • Admin: Yes
  • full_access_as_app
    • Type: Application
    • Description: Use Exchange Web Services with full access to all mailboxes
    • Admin: Yes

full\_access\_as\_app uses Exchange Web Services with full access to all mailboxes.

Once API permission are added, then an administrator must consent to grant these permissions. Learn more about permissions and consent.

Assign the required roles in the Exchange Admin Center​

  1. Sign in to the Exchange Admin Center (EAC).
  2. In the EAC, navigate to Roles.
  3. Click Admin Roles.
  4. Search for the role Discovery Management and click on it.
  5. Click on the Assign tab.
  6. Click + and search for the user you want to assign the role to.
  7. Click Save.

Configure Microsoft EWS in Automation Service and Cloud SOAR​

Before you can use this automation integration, you must configure its authentication settings so that the product you're integrating with can communicate with Sumo Logic. For general guidance, see Configure Authentication for Automation Integrations.

How to open the integration's configuration dialog
  1. Access App Central and install the integration. (You can configure at installation, or after installation with the following steps.)
  2. Go to the Integrations page.
    Classic UI. In the main Sumo Logic menu, select Automation and then select Integrations in the left nav bar.
    New UI. In the main Sumo Logic menu, select Automation > Integrations. You can also click the Go To... menu at the top of the screen and select Integrations.
  3. Select the installed integration.
  4. Hover over the resource name and click the Edit button that appears.
    Edit a resource

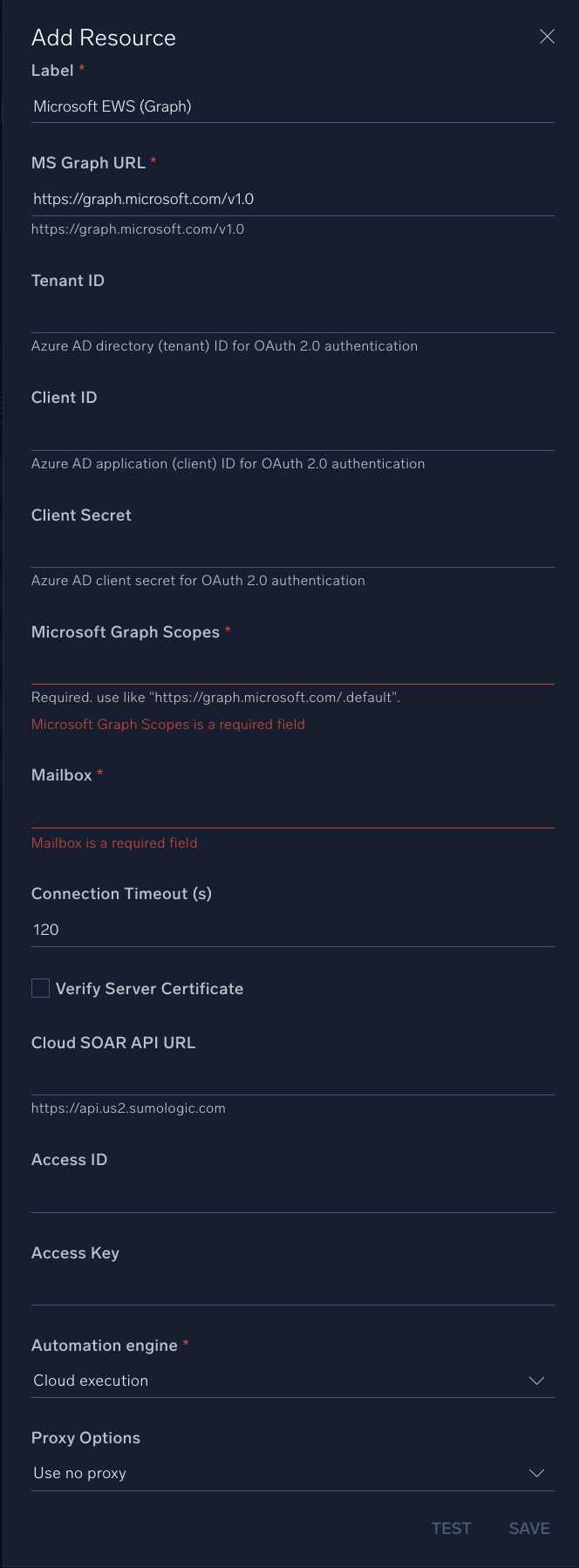

In the configuration dialog, enter information from the product you're integrating with. When done, click TEST to test the configuration, and click SAVE to save the configuration:

note

Use the information you set up above.

  • Label. Enter the name you want to use for the resource.

  • Host. Enter your Microsoft EWS host address, for example, outlook.office365.com

  • Tenant ID. Enter the tenant ID for authentication.

  • Client ID. Enter the client ID for authentication.

  • Client Secret. Enter the client secret for authentication.

  • Microsoft Graph Scope. Enter the scope.

  • Mailbox. Enter the mailbox address.

  • Connection Timeout (s). Set the maximum amount of time the integration will wait for a server's response before terminating the connection. Enter the connection timeout time in seconds (for example, 180).

  • Verify Server Certificate. Select to validate the server’s SSL certificate.

  • Cloud SOAR API URL. Enter your Sumo Logic API URL (for example, https://api.us2.sumologic.com). Enter the API endpoint URL for your region.

  • Access ID. Enter the access ID for your Sumo Logic access key. Select Default as the scope when generating access keys.

  • Access Key. Enter the access key corresponding to your Sumo Logic access ID.

  • Automation Engine. Select Cloud execution for this certified integration. Select a bridge option only for a custom integration. See Cloud or Bridge execution.

  • Proxy Options. Select whether to use a proxy. (Applies only if the automation engine uses a bridge instead of cloud execution.)

    • Use no proxy. Communication runs on the bridge and does not use a proxy.
    • Use default proxy. Use the default proxy for the bridge set up as described in Using a proxy.
    • Use different proxy. Use your own proxy service. Provide the proxy URL and port number.
Microsoft EWS configuration

For information about Microsoft EWS, see Microsoft Exchange Web Services documentation.

Category​

Email Gateway

Change Log​

  • September 10, 2025 - First upload
