Nmap

nmap

Version: 1.3
Updated: Jun 26, 2023

Nmap is a free and open-source network scanner. Nmap is used to discover hosts and services on a computer network by sending packets and analyzing the responses.

Actions​

  • Create Scan (Enrichment) - Start NMAP scan.
  • Check Scan Status (Enrichment) - Check scan status.
  • Get Scan Info (Enrichment) - Get scan info.
  • Get Scan Report (Enrichment) - Get scan report.
  • List Credits (Enrichment) - Get API calls report for current member.

Configure Nmap in Automation Service and Cloud SOAR​

Before you can use this automation integration, you must configure its authentication settings so that the product you're integrating with can communicate with Sumo Logic. For general guidance, see Configure Authentication for Automation Integrations.

How to open the integration's configuration dialog
  1. Access App Central and install the integration. (You can configure at installation, or after installation with the following steps.)
  2. Go to the Integrations page.
    Classic UI. In the main Sumo Logic menu, select Automation and then select Integrations in the left nav bar.
    New UI. In the main Sumo Logic menu, select Automation > Integrations. You can also click the Go To... menu at the top of the screen and select Integrations.
  3. Select the installed integration.
  4. Hover over the resource name and click the Edit button that appears.
    Edit a resource

In the configuration dialog, enter information from the product you're integrating with. When done, click TEST to test the configuration, and click SAVE to save the configuration:

  • Label. Enter the name you want to use for the resource.

  • API URL. Enter your Nmap API URL. The default value is https://api.nmap.online

  • Api Key. Enter your Nmap API Key.

  • Verify Server Certificate. Select to validate the server’s SSL certificate.

  • Connection Timeout (s). Set the maximum amount of time the integration will wait for a server's response before terminating the connection. Enter the connection timeout time in seconds (for example, 180).

  • Automation Engine. Select Cloud execution for this certified integration. Select a bridge option only for a custom integration. See Cloud or Bridge execution.

  • Proxy Options. Select whether to use a proxy. (Applies only if the automation engine uses a bridge instead of cloud execution.)

    • Use no proxy. Communication runs on the bridge and does not use a proxy.
    • Use default proxy. Use the default proxy for the bridge set up as described in Using a proxy.
    • Use different proxy. Use your own proxy service. Provide the proxy URL and port number.

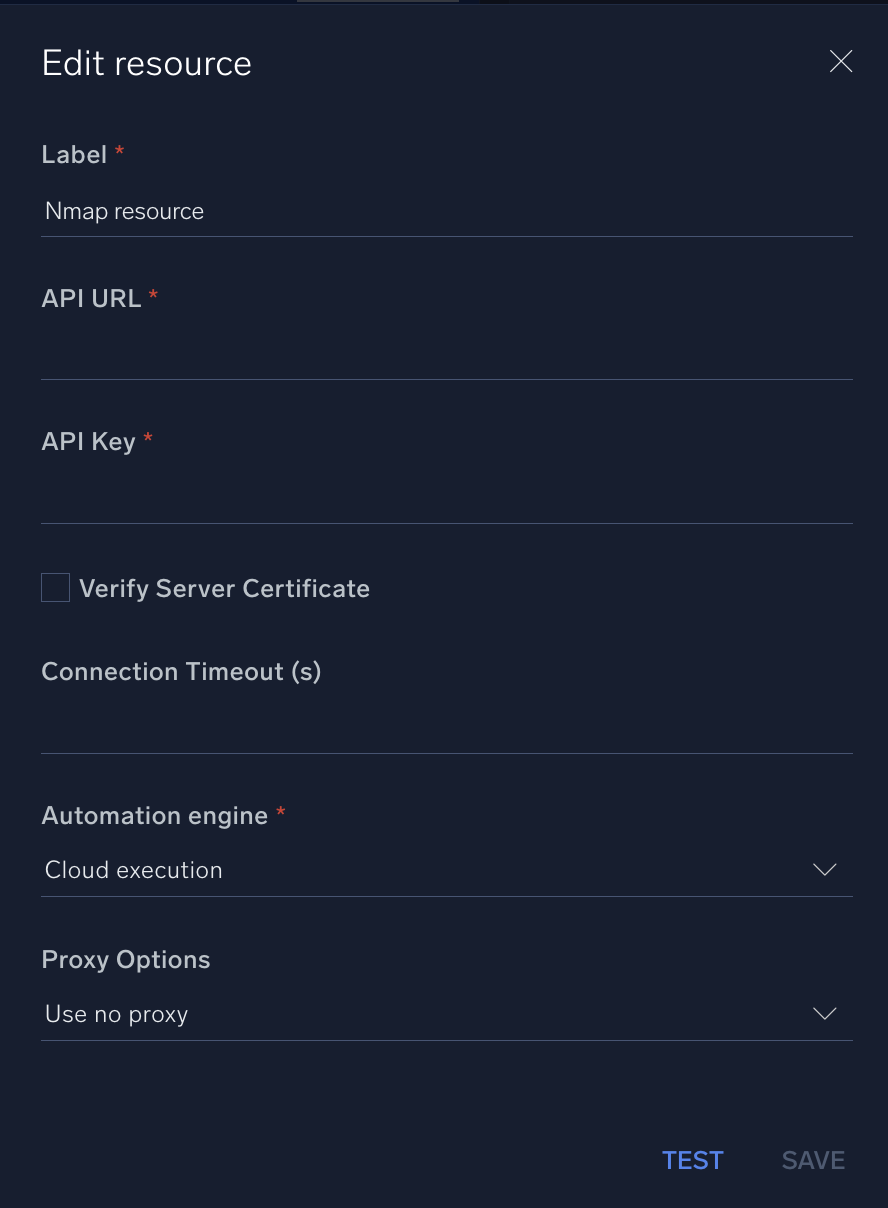

Nmap configuration

For information about Nmap, see Nmap documentation.

Change Log​

  • August 09, 2022 - First upload
  • April 28, 2023 (v1.2) - Integration refactored
  • June 26, 2023 (v1.3) - Removed unnecessary empty lines and other little changes
