OpenLDAP

Version: 1.1
Updated: Sep 28, 2023

OpenLDAP Software is an open-source implementation of the Lightweight Directory Access Protocol. This integration allows users to browse, and look up data that appears on an LDAP Server.

Actions

• Get Users Info (Enrichment) - Gather users info.

External Libraries

• LDAP3

Configure OpenLDAP in Automation Service and Cloud SOAR

Before you can use this automation integration, you must configure its authentication settings so that the product you're integrating with can communicate with Sumo Logic. For general guidance, see Configure Authentication for Automation Integrations.

How to open the integration's configuration dialog

1. Access App Central and install the integration. (You can configure at installation, or after installation with the following steps.)
2. Go to the Integrations page.
   Classic UI. In the main Sumo Logic menu, select Automation and then select Integrations in the left nav bar.
   New UI. In the main Sumo Logic menu, select Automation > Integrations. You can also click the Go To... menu at the top of the screen and select Integrations.
3. Select the installed integration.
4. Hover over the resource name and click the Edit button that appears.

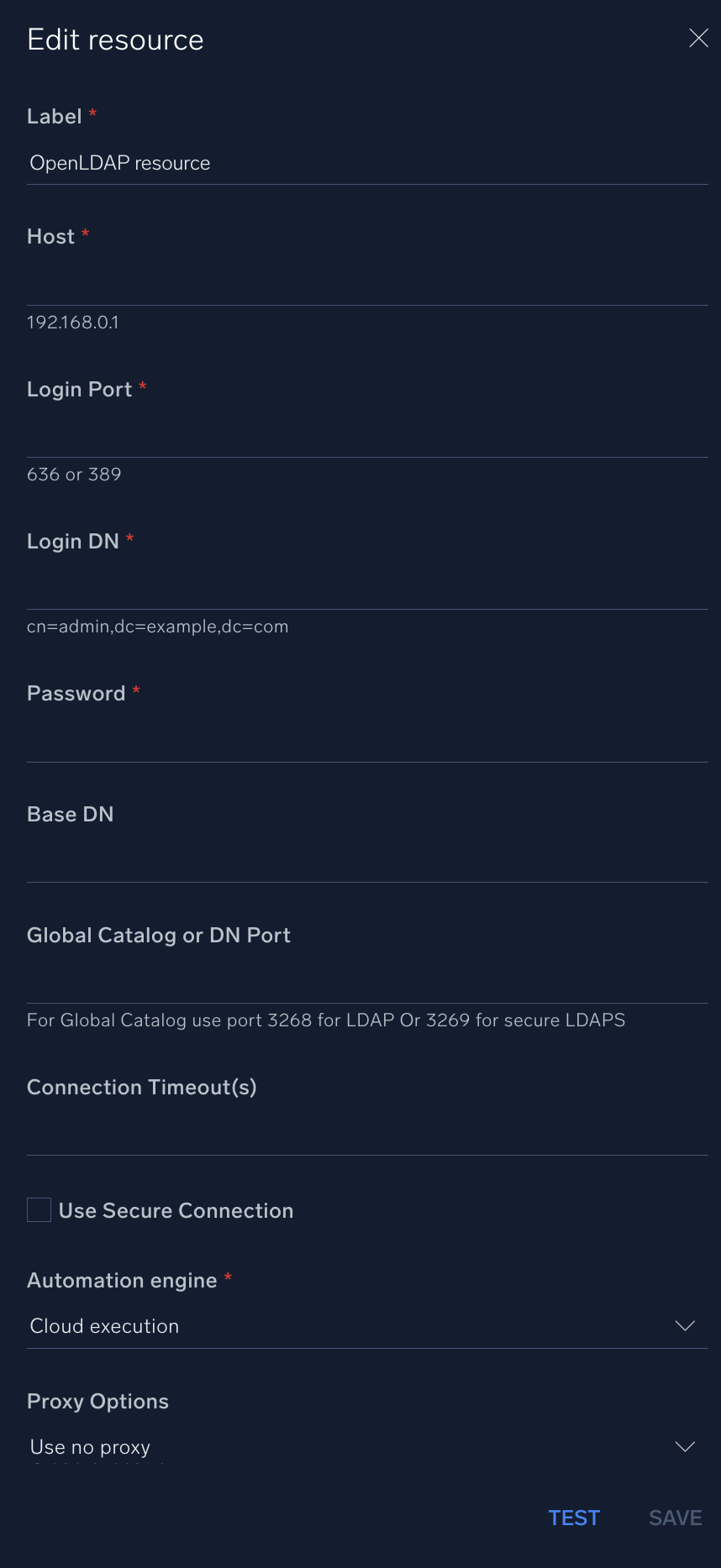

In the configuration dialog, enter information from the product you're integrating with. When done, click TEST to test the configuration, and click SAVE to save the configuration:

• Label. Enter the name you want to use for the resource.

• Host. Enter your OpenLDAP host address, for example, 192.168.0.1

• Login Port. Enter 636 or 389.

• Login DN. Enter your login DN, for example, cn=admin,dc=example,dc=com

• Password. Enter the password for the login.

• Base DN. Enter your base DN.

• Global Catalog or DN Port. For global catalog E=enter 3268 for LDAP, or enter 3269 for secure LDAPS.

• Connection Timeout (s). Set the maximum amount of time the integration will wait for a server's response before terminating the connection. Enter the connection timeout time in seconds (for example, 180).

• Verify Server Certificate. Select to validate the server’s SSL certificate.

• Automation Engine. Select Cloud execution for this certified integration. Select a bridge option only for a custom integration. See Cloud or Bridge execution.

• Proxy Options. Select whether to use a proxy. (Applies only if the automation engine uses a bridge instead of cloud execution.)

  • Use no proxy. Communication runs on the bridge and does not use a proxy.
  • Use default proxy. Use the default proxy for the bridge set up as described in Using a proxy.
  • Use different proxy. Use your own proxy service. Provide the proxy URL and port number.

For information about OpenLDAP, see OpenLDAP documentation.

Change Log

• October 05, 2022 - First upload
• July 18, 2023 (v1.1) - Updated the integration with Environmental Variables
