PowerShell Tools

powershell-tools

Version: 1.5
Updated: Nov 23, 2023

Runs commands on a Local or Remote Window Host and returns all output from the commands, including errors.

Actions

  • Execute Commands (Enrichment) - Execute commands on local or remote Window Server/host.
  • Whois (Enrichment) - Whois performs the registration record for the domain name or IP address that you specify.
  • Query User (Enrichment) - Displays information about user sessions on a Remote Desktop Session Host server.
  • DNS Lookup (Enrichment) - Performs a DNS query for the specified name and this is similar functionally to the nslookup tool which allows users to query for names.
  • VMware Carbon Black Enrichment (Enrichment) - This enrichment queries the Carbon Black Device API for an IP address and returns host information
  • CrowdStrike Falcon Enrichment (Enrichment) - This enrichment queries the CrowdStrike Device API for an IP address and returns host information
  • GreyNoise Enrichment (Enrichment) - GreyNoise helps security teams reduce noise and prioritize signal-targeted attacks against their organization. This enrichment queries GreyNoise to see what it knows about the IP address
  • SentinelOne Enrichment (Enrichment) - The SentinelOne enrichment queries IP addresses or hostnames using the SentinelOne API and returns the information SentinelOne knows about the host.

Configuration

PowerShell Tools Configuration on Window Server (Domain Controller)

Note: PowerShell Tools was tested on Windows Server 2016 and 2008, PowerShell Remoting is using WinRM, So it's strongly suggested to test this integration on test environments before testing it on production environments. In this configuration guide, you will be directed on how to prepare a environment for testing on a window host but this guide is only related to the environment we tested on it, so it may differ in case you are using a different window server/host version

You must have Windows Server/Host to do the following setup on that Window Server/Host, So that Cloud SOAR can connect to the window Server/host and run PowerShell commands, also a user who will run the PowerShell command must have admin access for the local or remote window host.

The Enable-PSRemoting cmdlet configures the computer to receive PowerShell remote commands that are sent by using the WS-Management technology. WS-Management-based PowerShell remoting is currently supported only on the Windows platform. PowerShell remoting is enabled by default on Windows Server platforms. You can use Enable-PSRemoting to enable PowerShell remoting on other supported versions of Windows and to re-enable remoting if it becomes disabled.

You have to run this command only one time on each computer that will receive commands. You do not have to run anything on Cloud SOAR that only sends commands. Because the configuration starts listeners to accept remote connections, it is prudent to run it only where it is needed.

PowerShell remoting must be enabled on the remote/local computer. The remoting features of PowerShell are supported by the WinRM service, which is the Microsoft implementation of the Web Services for Management (WS-Management) protocol. When you enable PowerShell remoting, you change the default configuration of WS-Management and add a system configuration that allows users to connect to WS-Management

To configure PowerShell to receive remote commands:

  1. Start PowerShell with the Run as administrator option.

  2. At the command prompt, type: Enable-PSRemoting.
    powershell-tools

    The Enable-PSRemoting cmdlet performs the following operations:

    • Runs the Set-WSManQuickConfig cmdlet, which performs the following tasks:
      • Starts the WinRM service.
      • Sets the startup type on the WinRM service to Automatic.
      • Creates a listener to accept requests on any IP address.
      • Enables a firewall exception for WS-Management communications.
      • Creates the simple and long name session endpoint configurations if needed.
      • Enables all session configurations.
      • Changes the security descriptor of all session configurations to allow remote access.
    • Restarts the WinRM service to make the preceding changes effective.
  3. To verify that remoting is configured correctly, run a test command such as the following command, which creates a remote session on the local computer.

    New-PSSession

    If remoting is configured correctly, the command will create a session on the local computer and return an object that represents the session. The output should resemble the following sample output: powershell-tools.
    powershell-tools

    If the command fails, for assistance, see about_Remote_Troubleshooting.

  4. From the same Administrative command line run following commands:

    winrm set winrm/config/client '@{TrustedHosts="*"}'
    winrm set winrm/config/client/auth '@{Basic="true"}'
    winrm set winrm/config/service/auth '@{Basic="true"}'
    winrm set winrm/config/service '@{AllowUnencrypted="true"}'
    winrm set winrm/config/client '@{AllowUnencrypted="true"}'

    powershell-tools

Basic Authentication Limitations:

Basic Authentication over HTTP is not supported. Basic Authentication can be used over HTTPS by installing a certificate on the target server. The certificate must have a CN name that matches the hostname, is not expired or revoked. A self-signed certificate may be used for testing purposes. See How To: Configure WINRM for HTTPS for additional details.

Configuration on Domain Controller for WinRM over HTTPS

  1. Open Server Manager on Window Server (Domain Controller).
    powershell-tools
  2. The Active Directory Certificate Services role with the Certification Authority sub-role should already installed and configured on your Domain Controller.
    powershell-tools
  3. If Active Directory Certificate Services role is not already installed, refer to this Docs.
  4. Open Certification Authority through Server Manager - Tools menu.
    powershell-tools
  5. You should observe all these directories associated with Certification Authority including Certificate Templates.
    powershell-tools
  6. As a First step, you need to create a customized WinRM SSL Certificate Template, which will be used for WinRM over HTTPS.
  7. Right-click on the Certificate Template and select Manage.
    powershell-tools
  8. Right-click on the Web Server and choose Duplicate Template.
    powershell-tools
  9. Go to the General Tab and set the Template Name and Display Name.
    powershell-tools
  10. Go to the Subject Name Tab and choose Build from this Active Directory information From the drop-down list, choose Common name as the Subject name format. Uncheck the User Principal Name (UPN) and only check the DNS name.
    powershell-tools
  11. Go to the Security tab, add the group that you want to be able to request the certificate template and grant them Read, Enroll, and Autoenroll permissions.
    powershell-tools
  12. Click Apply to save the changes made to your new template Within the Certification Authority, select Certificate Templates > New > Certificate Template to Issue.
    powershell-tools
  13. Choose the recently created template from the list and click OK.
    powershell-tools
  14. You will see your new certificate template.
    powershell-tools

Configure Group Policy Management

  1. For automatic enrollment of computers, set up Group Policy Objects (GPO) on the domain or organizational units (OU).
  2. Open Group Policy Management from the Server Manager Tools menu.
    powershell-tools
  3. To create new Group Policy Object (GPO), Right-click on Group Policy Objects and select New.
    powershell-tools
  4. Provide a new name for your Group Policy Object (GPO) and click OK.
    powershell-tools
  5. Right-Click on your newly Created GPO and Click on Edit.
    powershell-tools
  6. This window will be displayed.
    powershell-tools
  7. You need to configure client certificate auto-enrollment settings. Go to Computer Configuration > Policies > Windows Settings > Security Settings > Public Key Policies > Certificate Services Client - Auto-Enrollment.
    powershell-tools
  8. Double-click on Certificate Services Client - Auto-Enrollment, choose Enabled, and check both checkboxes.
    powershell-tools
  9. Click Apply and OK.
  10. Set the Windows Remote Management service to Automatic.
  11. In the Group Policy Management console, go to Computer Configuration > Policies > Windows Settings > Security Settings > System Services.
    powershell-tools
  12. Double click on Windows Remote Management (WS-Management).
    powershell-tools
  13. Check the box to define the policy setting and configure the startup mode of the WinRM service to Automatic.
    powershell-tools
    powershell-tools
  14. In the Group Policy Management console, go to Computer Configuration > Policies > Administrative Templates: > Windows Components > Windows Remote Management (WinRM) > WinRM Service.
    powershell-tools
    powershell-tools
  15. Double click on Allow remote server management through WinRM.
  16. Choose Enabled and specify the IP address of your automation bridge (Cloud SOAR).
    powershell-tools
  17. Within the same WinRM Service console, double-click on Allow Basic Authentication. This policy setting enables you to control whether the Windows Remote Management (WinRM) service accepts Basic authentication from Cloud SOAR.
    powershell-tools
  18. Select Enabled and click OK.
    powershell-tools 1 Next, create a firewall rule to allow traffic on WinRM over HTTPs port 5986.
  19. Within the Group Policy Management console, go to Computer Configuration > Policies > Windows Settings > Security Settings > Windows Firewall with Advanced Security.
    powershell-tools
  20. Right-click on Inbound Rule and select New Rule.
    powershell-tools
  21. Select Port for New Rule and click next.
    powershell-tools
  22. Select TCP and set the Port number 5986.
    powershell-tools
  23. Select only Domain and click next.
    powershell-tools
  24. Provide a name for the rule and click Finish.
    powershell-tools
  25. You can now Link the GPO with the Domain or Organizational Unit (OU) as per your requirements.
  26. It is recommended to create a new Organizational Unit (OU). Access Active Directory Users and Computers through the Server Manager's Tools menu.
    powershell-tools
  27. Create a new Organizational Unit (OU) by right-clicking on the Domain, choosing New, and then selecting Organizational Unit.
    powershell-tools
  28. Access the Group Policy Management through the Server Manager Tools menu.
  29. Right-Click on your Organizational Unit (OU) and click on Link an Existing GPO.
    powershell-tools
  30. Select Group Policy Object that you just created and click OK.
    powershell-tools
  31. You will notice the linkage of the Group Policy Object (GPO) to the Organizational Unit (OU).
    powershell-tools
  32. Execute this command from the command line interface (CLI):
    gpresult /r -scope computer
  33. The Group Policy Object (GPO) you created should appear in COMPUTER SETTINGS within the Applied Group Policy Objects.
    powershell-tools
  34. If you cannot see the Group Policy Object (GPO), verify the Organizational Unit (OU) and confirm that the computer account is located within that OU.
  35. Execute the the below command from the host's command line interface (CLI).
    gpupdate /force
  36. Use Windows PowerShell (Run as Administrator) to run the following command on the host where you plan to configure WinRM with HTTPS.
    winrmquickconfig -transport:https

    powershell-tools
  37. You need to verify the Certificate on Domain Controller Open Certification Authority from Tools of Server Manager.
    powershell-tools
  38. Click on Issued Certificates.
    powershell-tools
  39. You will see a new certificate issued by Certificate template you created for WinRm for all hosts.
  40. You will observe a newly issued certificate with Certificate template you created for WinRM for the hosts.
    powershell-tools
  41. Validate your WinRM HTTPs Listener to ensure correctness. You will see results if it's configured properly.
    powershell-tools
  42. If really needed, you can delete your previous WinRM HTTPs Listener and add new certificate.
    winrm delete winrm/config/Listener?Address=*+Transport=HTTPS
  43. After deletion (or In the absence of a Certificate Authority in your domain/host, you have the option to use self-signed certificates by running the following command).
  44. You can configure WinRM for HTTPS listener manually (ensure to set it with your accurate hostname and CertificateThumbprint).
     $hostinfo = '@{Hostname="<DNS_NAME>"; CertificateThumbprint="<THUMBPRINT>"}'
    winrm create winrm/config/Listener?Address=*+Transport=HTTPS $hostinfo
  45. Run below command from command line interface (CLI) to see if the host is listening on correct port.
    netstat -na
    For example:
    powershell-tools

Whois Action Configuration:

You must need to download the whois.exe from Here and Drop the whois.exe file in c:/windows/system32 so that the commands are global and do not have to change the directory to where the files are

Query User Action:

Syntax: query user [<username> | <sessionname> | <sessionID>] [/server:<servername>]

Remarks:

  • To use this action, you must have Full Control permission or special access permission.
  • If you don't specify a user using the <username>, <sessionname>, or sessionID parameters, a list of all users who are logged on to the server is returned. Alternatively, you can also use the query session command to display a list of all sessions on a server.
  • When query user returns information, a greater than (>) symbol is displayed before the current session

PowerShell Tools in Automation Service and Cloud SOAR

  1. To configure the integration, log into the application, expand the configuration menu in the top right corner by hovering over the gear icon and click Automation.
    powershell-tools
  2. In the Automation section, on the left menu, click Integrations.
    powershell-tools
  3. After the list of the integrations appears, search/look for PowerShell Tools integration and click on the row. The integration details will appear. Click on the "+" button to add new Resource.

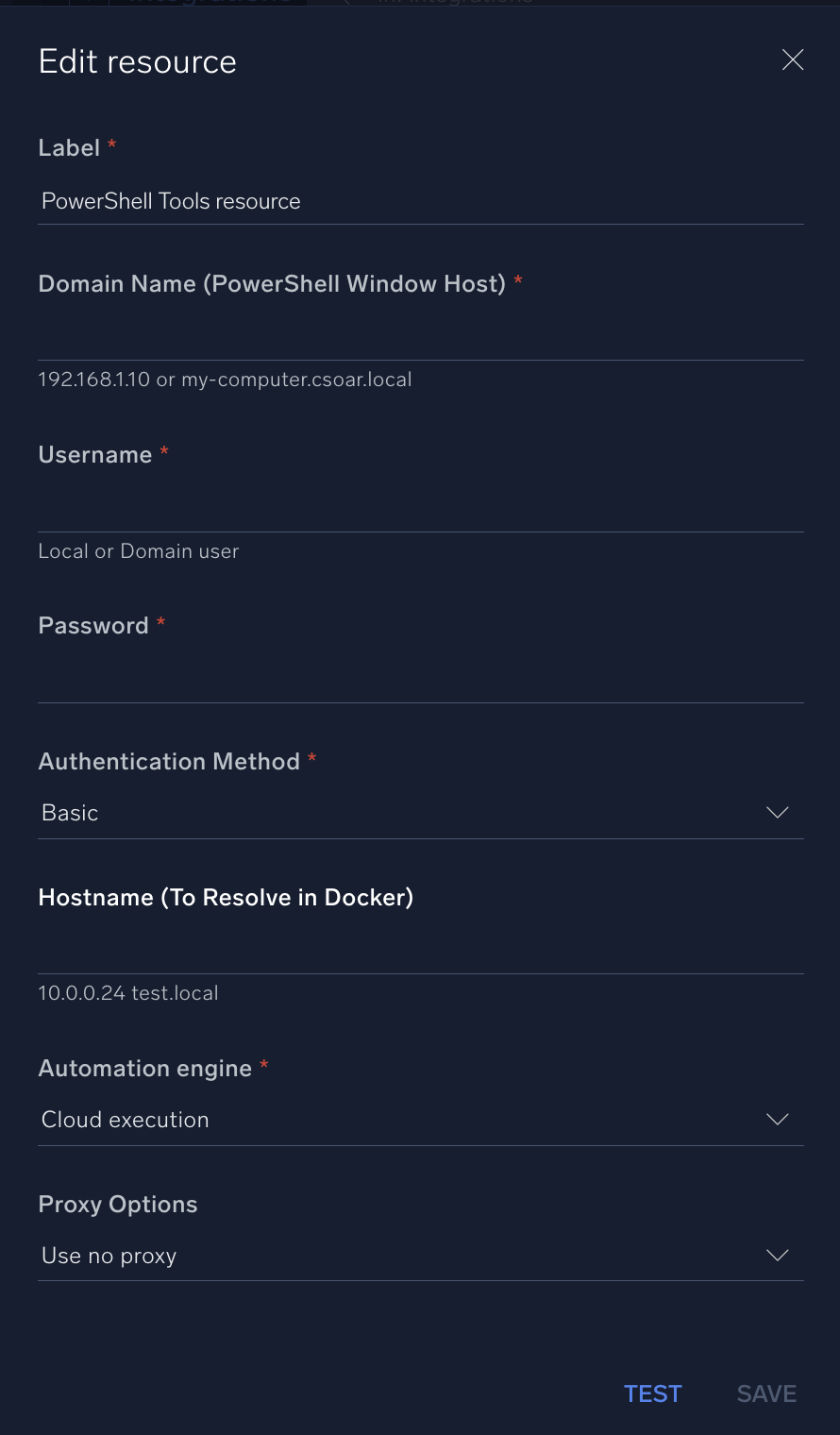

  4. Populate all the required fields (*) and then click Save.
    • Label. The desired name for the resource.
    • Domain Name (PowerShell Window Host). Specify Domain Name (Hostname) for Window Server e.g 192.168.1.10 or my-computer.csoar.local.
    • Username. Username of your window host.
    • Password. Password of your window host.
    • Hostname (To Resolve in Docker). Hostname (To Resolve in Docker) e.g 10.0.0.24 test.local.
      powershell-tools
  5. To make sure the resource is working, hover over the resource and then click the pencil icon that appears on the right.
    powershell-tools
  6. Click TEST SAVED SETTINGS.
    powershell-tools
  7. You should receive a successful notification in the bottom right corner.
    powershell-tools

Change Log

  • December 30, 2022 - First upload
  • January 12, 2023 - Added new actions:
    • VMware Carbon Black Enrichment
    • CrowdStrike Falcon Enrichment
    • GreyNoise Enrichment
    • SentinelOne Enrichment
  • November 23, 2023 (v1.5)
    • Updated the integration to address hostname resolution in Docker
    • Updated the configuration documentation for the Window Server Domain Controller
