Sumo Logic Automation Tools

Version: 0.1
Updated: Nov 11, 2024

Sumo Logic Automation Tools simplifies Cloud SOAR playbooks with data processing and automation.

Actions

Buffer (Custom) - Takes a JSON string or object and returns it as a JSON result. Helpful for dumping a JSON blob in string format and rendering in JSON format. See Buffer example.
Data Transform (Custom) - Provides various functions to more easily transform data in a playbook. See Data Transfer example.
Build JSON Object (Custom) - Provide the action with JSON key placeholder or string to build a new JSON object with the specified key/values. See Build JSON Object example.
Build Signal Output (Custom) - Converts the Sumo Logic SIEM Signal JSON object to HTML or plain text with line breaks. See Build Signal Output example.

Actions usage

Buffer

INPUT="MY EXAMPLE STRING"

OUTPUT = {
  "data": "MY EXAMPLE STRING"
}

Data Transform

Split text

Splits a string into an array based on a delimiter and returns the specified element.

INPUT = {
  "string_input": "MY,EXAMPLE,STRING",
  "transform_function": "Split Text",
  "transform_argument": ",",
  "array_element": 1
}

OUTPUT = {
  "result": "EXAMPLE"
}

Strip whitespace

Strips whitespace from the beginning and end of a string.

INPUT = {
  "string_input": "   MY EXAMPLE STRING  ",
  "transform_function": "Strip Whitespace"
  "transform_argument": "MY"
}

OUTPUT = {
  "result": "EXAMPLE STRING"
}

Trim leading whitespace

Trims leading whitespace from a string.

INPUT = {
  "string_input": "     MY EXAMPLE STRING",
  "transform_function": "Lstrip"
}

OUTPUT = {
  "result": "MY EXAMPLE STRING"
}

Trim trailing whitespace

Trims trailing whitespace from a string.

INPUT = {
  "string_input": "MY EXAMPLE STRING    ",
  "transform_function": "Rstrip"
}

OUTPUT = {
  "result": "MY EXAMPLE STRING"
}

Replace text

Replaces all occurrences of a string with another string.

INPUT = {
  "string_input": "MY EXAMPLE STRING",
  "transform_function": "Replace",
  "transform_argument": "EXAMPLE",
  "replace_argument": "REPLACED"
}

OUTPUT = {
  "result": "MY REPLACED STRING"
}

Regex-based replacement

Replaces all occurrences of a regex pattern with another string.

INPUT = {
  "string_input": "MY EXAMPLE STRING",
  "transform_function": "Regex Replace",
  "transform_argument": "EXAMPLE",
  "replace_argument": "REPLACED"
}

OUTPUT = {
  "result": "MY REPLACED STRING"
}

Add prefix and/or suffix

Adds a prefix and/or suffix to a string.

INPUT = {
  "string_input": "EXAMPLE STRING",
  "transform_function": "Prefix Suffix",
  "prefix_argument": "MY ",
  "suffix_argument": " STRING"
}

OUTPUT = {
  "result": "MY EXAMPLE STRING"
}

Regex match

Matches a string against a regex pattern and returns the specified element.

INPUT = {
  "string_input": "MY EXAMPLE STRING",
  "transform_function": "Regex",
  "transform_argument": "EXAMPLE"
  "array_element": 0
}

OUTPUT = {
  "result": "EXAMPLE"
}

Convert to uppercase

Converts a string to uppercase.

INPUT = {
  "string_input": "my example string",
  "transform_function": "Upper"
}

OUTPUT = {
  "result": "MY EXAMPLE STRING"
}

Convert to lowercase

Converts a string to lowercase.

INPUT = {
  "string_input": "MY EXAMPLE STRING",
  "transform_function": "Lower"
}

OUTPUT = {
  "result": "my example string"
}

Convert to title case

Converts a string to title case.

INPUT = {
  "string_input": "my example string",
  "transform_function": "Title"
}

OUTPUT = {
  "result": "My Example String"
}

Capitalize first letter

Capitalizes the first letter of a string.

INPUT = {
  "string_input": "my example string",
  "transform_function": "Capitalize"
}

OUTPUT = {
  "result": "My example string"
}

Encode as UTF-8

Encodes a string as UTF-8.

INPUT = {
  "string_input": "Cafe",
  "transform_function": "Encode UTF-8"
}

OUTPUT = {
  "result": "b'Cafe\\xcc\\x81'"
}

Encode as ASCII

Encodes a string as ASCII.

INPUT = {
  "string_input": a+b*c(d)e[f]",
  "transform_function": "Encode ASCII"
}

OUTPUT = {
  "result": "b'a+b*c(d)e[f]'"
}

Escape special characters

Escapes special characters in a string.

INPUT = {
  "string_input": "a+b*c(d)e[f]",
  "transform_function": "Escape String"
}

OUTPUT = {
  "result": "a\\+b\\*c\\(d\\)e\\[f\\]"
}

Build JSON Object

Example:

{
    "MY EXAMPLE KEY_1": "MY EXAMPLE VALUE",
    "MY EXAMPLE KEY_2": "MY EXAMPLE VALUE",
    "MY EXAMPLE KEY_3": ["MY EXAMPLE VALUE_1", "MY EXAMPLE VALUE_2"]
}

Input Fields For Every Key1, Key2, Key3

JSON Key Placeholder -> MY EXAMPLE KEY_3
JSON Value Placeholder -> (Whole JSON Object) eg . Any Action output.raw

Output

{
    "MY EXAMPLE KEY_3": ["MY EXAMPLE VALUE_1", "MY EXAMPLE VALUE_2"]
}

Build Signal Output

String input

CASE 1: Input as Get Insight V2 output.raw Preferred
CASE 2: Input as Get Signal output.raw
CASE 3: Input as Sumo Logic SIEM Signal as JSON

Output format type

HTML with line breaks
Plain Text With Line Breaks

Display time of timezone output

List of Timezones
Example: America/New_York

Fields to exclude from output

List Excluded Fields From Output
Example: field1, field2, field3

Fields to include from output

List Included Fields From Output
Example: field1, field2, field3

INPUT example

{
  "id": "07f3de36-4447-3c3b-a801-xxxxxx",
  "readableId": "INSIGHT-00000",
  "name": "Sumo Logic SIEM Signal",
  "signals": [
    {
      "id": "38fd9c37-0df6-5333-86e5-xxxxxx",
      "name": "Sumo Logic SIEM Signal",
      "description": "This signal is triggered when a new process is created.",
      "stage": "Execution",
      "created": "2024-08-18T12:19:06.056000",
      "timestamp": "2024-08-18T12:19:06.056000",
      "severity": 1,
      "recordCount": 1,
      "recordTypes": [],
      "contentType": "RULE",
      "allRecords": [
        {
          "baseImage": "C:\\Program Files\\Rapid7\\Insight Agent\\components\\endpoint_broker\\",
          "commandLine": "PowerShell \"$code = \\\"using System; using System.Linq; using System.Collections.Generic; using System.ComponentModel; using System.Runtime.InteropServices; using System.Security.Principal; using System.Text; namespace AuditEventPolicy { public class Collect { [DllImport(\\\"\\\"advapi32.dll\\\"\\\", SetLastError = false)] private static extern uint LsaClose(IntPtr ObjectHandle); [DllImport(\\\"\\\"advapi32.dll\\\"\\\", SetLastError = true)] private static extern uint LsaOpenPolicy( ref LSA_UNICODE_STRING SystemName, ref LSA_OBJECT_ATTRIBUTES ObjectAttributes, uint DesiredAccess, out IntPtr PolicyHandle); [DllImport(\\\"\\\"advapi32.dll\\\"\\\", SetLastError = false)] private static extern uint LsaNtStatusToWinError(uint status); [DllImport(\\\"\\\"advapi32.dll\\\"\\\")] private static extern uint LsaQueryInformationPolicy(IntPtr PolicyHandle, uint InformationClass, out IntPtr Buffer); internal const uint STATUS_SUCCESS = 0x00000000; internal const uint STATUS_ACCESS_DENIED = 0xC0000022; internal const uint STATUS_INSUFFICIENT_RESOURCES = 0xC000009A; internal const uint STATUS_INTERNAL_DB_ERROR = 0xC0000158; internal const uint STATUS_INVALID_HANDLE = 0xC0000008; internal const uint STATUS_INVALID_SERVER_STATE = 0xC00000DC; internal const uint STATUS_INVALID_PARAMETER = 0xC000000D; internal const uint STATUS_NO_SUCH_PRIVILEGE = 0xC0000060; internal const uint STATUS_OBJECT_NAME_NOT_FOUND = 0xC0000034; internal const uint STATUS_UNSUCCESSFUL = 0xC0000001; private static readonly Dictionary<uint, string> LsaNtStatusMessages = new Dictionary<uint, string>{ {STATUS_SUCCESS, \\\"\\\"The operation completed successfully.\\\"\\\"}, {STATUS_ACCESS_DENIED, \\\"\\\"Access is denied.\\\"\\\"}, {STATUS_INSUFFICIENT_RESOURCES, \\\"\\\"There are not enough system resources to complete the call.\\\"\\\"}, {STATUS_INTERNAL_DB_ERROR, \\\"\\\"The LSA database contains an internal inconsistency.\\\"\\\"}, {STATUS_INVALID_HANDLE, \\\"\\\"An object or RPC handle is not valid.\\\"\\\"}, {STATUS_INVALID_SERVER_STATE, \\\"\\\"The LSA server is currently disabled.\\\"\\\"}, {STATUS_INVALID_PARAMETER, \\\"\\\"One of the parameters is not valid.\\\"\\\"}, {STATUS_NO_SUCH_PRIVILEGE, \\\"\\\"A specified privilege does not exist.\\\"\\\"}, {STATUS_OBJECT_NAME_NOT_FOUND, \\\"\\\"An object in the LSA policy database was not found.\\\"\\\"}, {STATUS_UNSUCCESSFUL, \\\"\\\"The requested operation was unsuccessful.\\\"\\\"}}; [Flags]public enum LsaPolicyAccessRights : uint{ POLICY_VIEW_LOCAL_INFORMATION = 0x00000001, POLICY_VIEW_AUDIT_INFORMATION = 0x00000002, POLICY_GET_PRIVATE_INFORMATION = 0x00000004, POLICY_TRUST_ADMIN = 0x00000008, POLICY_CREATE_ACCOUNT = 0x00000010, POLICY_CREATE_SECRET = 0x00000020, POLICY_CREATE_PRIVILEGE = 0x00000040, POLICY_SET_DEFAULT_QUOTA_LIMITS = 0x00000080, POLICY_SET_AUDIT_REQUIREMENTS = 0x00000100, POLICY_AUDIT_LOG_ADMIN = 0x00000200, POLICY_SERVER_ADMIN = 0x00000400, POLICY_LOOKUP_NAMES = 0x00000800, POLICY_NOTIFICATION = 0x00001000, POLICY_ALL_ACCESS = POLICY_VIEW_LOCAL_INFORMATION |POLICY_VIEW_AUDIT_INFORMATION |POLICY_GET_PRIVATE_INFORMATION |POLICY_TRUST_ADMIN |POLICY_CREATE_ACCOUNT |POLICY_CREATE_SECRET |POLICY_CREATE_PRIVILEGE |POLICY_SET_DEFAULT_QUOTA_LIMITS |POLICY_SET_AUDIT_REQUIREMENTS |POLICY_AUDIT_LOG_ADMIN |POLICY_SERVER_ADMIN |POLICY_LOOKUP_NAMES |POLICY_NOTIFICATION} [StructLayout(LayoutKind.Sequential)]internal struct LSA_UNICODE_STRING{ internal ushort Length; internal ushort MaximumLength; internal IntPtr Buffer; } [StructLayout(LayoutKind.Sequential)]internal struct LSA_OBJECT_ATTRIBUTES{ internal uint Length; internal IntPtr RootDirectory; internal IntPtr ObjectName; internal uint Attributes; internal IntPtr SecurityDescriptor; internal IntPtr SecurityQualityOfService; } public struct POLICY_AUDIT_EVENTS_INFO{ public bool AuditingMode; public IntPtr EventAuditingOptions; public Int32 MaximumAuditEventCount; } private static void HandleLsaNtStatus(uint ntStatusCode){ if (ntStatusCode == STATUS_SUCCESS){ return; } var winErrorCode = (int)(LsaNtStatusToWinError(ntStatusCode)); if (LsaNtStatusMessages.ContainsKey(ntStatusCode)){ throw new Win32Exception(winErrorCode, LsaNtStatusMessages[ntStatusCode]); } throw new Win32Exception(winErrorCode); } private static IntPtr GetLsaPolicyHandle(){ var systemName = new LSA_UNICODE_STRING(); var objectAttributes = new LSA_OBJECT_ATTRIBUTES{ Length = 0, RootDirectory = IntPtr.Zero, ObjectName = IntPtr.Zero, Attributes = 0, SecurityDescriptor = IntPtr.Zero, SecurityQualityOfService = IntPtr.Zero}; IntPtr lsaPolicyHandle; var ntStatus = LsaOpenPolicy(ref systemName, ref objectAttributes, (uint)(LsaPolicyAccessRights.POLICY_ALL_ACCESS), out lsaPolicyHandle); HandleLsaNtStatus(ntStatus); return lsaPolicyHandle; } public static Dictionary<string, int> GetAuditEventPolicy(){ var settings = new Dictionary<string, int>{ {\\\"\\\"System\\\"\\\", -1}, {\\\"\\\"Logon\\\"\\\", -1}, {\\\"\\\"Object Access\\\"\\\", -1}, {\\\"\\\"Privilege Use\\\"\\\", -1}, {\\\"\\\"Detailed Tracking\\\"\\\", -1}, {\\\"\\\"Policy Change\\\"\\\", -1}, {\\\"\\\"Account Management\\\"\\\", -1}, {\\\"\\\"Directory Service Access\\\"\\\", -1}, {\\\"\\\"Account Logon\\\"\\\", -1}}; var lsaPolicyHandle = GetLsaPolicyHandle(); try{ IntPtr outBuffer; uint policyType = 2; var ntStatus = LsaQueryInformationPolicy(lsaPolicyHandle, policyType, out outBuffer); if (ntStatus == STATUS_OBJECT_NAME_NOT_FOUND){ return settings; } HandleLsaNtStatus(ntStatus); var auditEventsInfo = Marshal.PtrToStructure<POLICY_AUDIT_EVENTS_INFO>(outBuffer); var values = new int[auditEventsInfo.MaximumAuditEventCount]; Marshal.Copy(auditEventsInfo.EventAuditingOptions, values, 0, auditEventsInfo.MaximumAuditEventCount); var categoryIndex = settings.Keys.ToArray(); for (int i = 0; i < values.Length; i++){ settings[categoryIndex[i]] = values[i]; } return settings; } finally{ var ntStatus = LsaClose(lsaPolicyHandle); HandleLsaNtStatus(ntStatus); } } } } \\\";$previousEncoding = [Console]::OutputEncoding;[Console]::OutputEncoding = [Text.Encoding]::UTF8;Add-Type -TypeDefinition $code -Language CSharp;@([AuditEventPolicy.Collect]::GetAuditEventPolicy()) | ConvertTo-Json;[Console]::OutputEncoding = $previousEncoding;\"",
          "cseSignal": {},
          "day": 18,
          "description": "A new process has been created",
          "device_hostname": "sjcd1pwadiap001",
          "device_hostname_raw": "SJCD1PWADIAP001.ihgint.global",
          "fieldTags": {},
          "fields": {
            "EventData.ProcessId": "0x11f0",
          },
        }
      ],
      "ruleId": "MATCH-S00198",
      "entity": {
      },
      "artifacts": [],
      "recordSearchDetails": null
    }
    ]
 }

OUTPUT example

HTML

{
  "signals": [
    "<b>Signal time:</b> 2024-08-18 12:19:06.056000+00:00<br/><b>Name:</b> Sumo Logic SIEM Signal<br/><b>Rule:</b> MATCH-S00198<br/><b>Stage:</b> Execution<br/><b>Entity Name:</b> <br/><b>baseImage:</b> C:\\\\Program Files\\\\Rapid7\\\\Insight Agent\\\\components\\\\endpoint_broker\\\\<br/><b>commandLine:</b> PowerShell '$code = 'using System; using System.Linq; using System.Collections.Generic; using System.ComponentModel; using System.Runtime.InteropServices; using System.Security.Principal; using System.Text; namespace AuditEventPolicy { public class Collect { [DllImport(''advapi32.dll'', SetLastError = false)] private static extern uint LsaClose(IntPtr ObjectHandle); [DllImport(''advapi32.dll'', SetLastError = true)] private static extern uint LsaOpenPolicy( ref LSA_UNICODE_STRING SystemName, ref LSA_OBJECT_ATTRIBUTES ObjectAttributes, uint DesiredAccess, out IntPtr PolicyHandle); [DllImport(''advapi32.dll'', SetLastError = false)] private static extern uint LsaNtStatusToWinError(uint status); [DllImport(''advapi32.dll'')] private static extern uint LsaQueryInformationPolicy(IntPtr PolicyHandle, uint InformationClass, out IntPtr Buffer); internal const uint STATUS_SUCCESS = 0x00000000; internal const uint STATUS_ACCESS_DENIED = 0xC0000022; internal const uint STATUS_INSUFFICIENT_RESOURCES = 0xC000009A; internal const uint STATUS_INTERNAL_DB_ERROR = 0xC0000158; internal const uint STATUS_INVALID_HANDLE = 0xC0000008; internal const uint STATUS_INVALID_SERVER_STATE = 0xC00000DC; internal const uint STATUS_INVALID_PARAMETER = 0xC000000D; internal const uint STATUS_NO_SUCH_PRIVILEGE = 0xC0000060; internal const uint STATUS_OBJECT_NAME_NOT_FOUND = 0xC0000034; internal const uint STATUS_UNSUCCESSFUL = 0xC0000001; private static readonly Dictionary<uint, string> LsaNtStatusMessages = new Dictionary<uint, string>{ {STATUS_SUCCESS, ''The operation completed successfully.''}, {STATUS_ACCESS_DENIED, ''Access is denied.''}, {STATUS_INSUFFICIENT_RESOURCES, ''There are not enough system resources to complete the call.''}, {STATUS_INTERNAL_DB_ERROR, ''The LSA database contains an internal inconsistency.''}, {STATUS_INVALID_HANDLE, ''An object or RPC handle is not valid.''}, {STATUS_INVALID_SERVER_STATE, ''The LSA server is currently disabled.''}, {STATUS_INVALID_PARAMETER, ''One of the parameters is not valid.''}, {STATUS_NO_SUCH_PRIVILEGE, ''A specified privilege does not exist.''}, {STATUS_OBJECT_NAME_NOT_FOUND, ''An object in the LSA policy database was not found.''}, {STATUS_UNSUCCESSFUL, ''The requested operation was unsuccessful.''}}; [Flags]public enum LsaPolicyAccessRights : uint{ POLICY_VIEW_LOCAL_INFORMATION = 0x00000001, POLICY_VIEW_AUDIT_INFORMATION = 0x00000002, POLICY_GET_PRIVATE_INFORMATION = 0x00000004, POLICY_TRUST_ADMIN = 0x00000008, POLICY_CREATE_ACCOUNT = 0x00000010, POLICY_CREATE_SECRET = 0x00000020, POLICY_CREATE_PRIVILEGE = 0x00000040, POLICY_SET_DEFAULT_QUOTA_LIMITS = 0x00000080, POLICY_SET_AUDIT_REQUIREMENTS = 0x00000100, POLICY_AUDIT_LOG_ADMIN = 0x00000200, POLICY_SERVER_ADMIN = 0x00000400, POLICY_LOOKUP_NAMES = 0x00000800, POLICY_NOTIFICATION = 0x00001000, POLICY_ALL_ACCESS = POLICY_VIEW_LOCAL_INFORMATION |POLICY_VIEW_AUDIT_INFORMATION |POLICY_GET_PRIVATE_INFORMATION |POLICY_TRUST_ADMIN |POLICY_CREATE_ACCOUNT |POLICY_CREATE_SECRET |POLICY_CREATE_PRIVILEGE |POLICY_SET_DEFAULT_QUOTA_LIMITS |POLICY_SET_AUDIT_REQUIREMENTS |POLICY_AUDIT_LOG_ADMIN |POLICY_SERVER_ADMIN |POLICY_LOOKUP_NAMES |POLICY_NOTIFICATION} [StructLayout(LayoutKind.Sequential)]internal struct LSA_UNICODE_STRING{ internal ushort Length; internal ushort MaximumLength; internal IntPtr Buffer; } [StructLayout(LayoutKind.Sequential)]internal struct LSA_OBJECT_ATTRIBUTES{ internal uint Length; internal IntPtr RootDirectory; internal IntPtr ObjectName; internal uint Attributes; internal IntPtr SecurityDescriptor; internal IntPtr SecurityQualityOfService; } public struct POLICY_AUDIT_EVENTS_INFO{ public bool AuditingMode; public IntPtr EventAuditingOptions; public Int32 MaximumAuditEventCount; } private static void HandleLsaNtStatus(uint ntStatusCode){ if (ntStatusCode == STATUS_SUCCESS){ return; } var winErrorCode = (int)(LsaNtStatusToWinError(ntStatusCode)); if (LsaNtStatusMessages.ContainsKey(ntStatusCode)){ throw new Win32Exception(winErrorCode, LsaNtStatusMessages[ntStatusCode]); } throw new Win32Exception(winErrorCode); } private static IntPtr GetLsaPolicyHandle(){ var systemName = new LSA_UNICODE_STRING(); var objectAttributes = new LSA_OBJECT_ATTRIBUTES{ Length = 0, RootDirectory = IntPtr.Zero, ObjectName = IntPtr.Zero, Attributes = 0, SecurityDescriptor = IntPtr.Zero, SecurityQualityOfService = IntPtr.Zero}; IntPtr lsaPolicyHandle; var ntStatus = LsaOpenPolicy(ref systemName, ref objectAttributes, (uint)(LsaPolicyAccessRights.POLICY_ALL_ACCESS), out lsaPolicyHandle); HandleLsaNtStatus(ntStatus); return lsaPolicyHandle; } public static Dictionary<string, int> GetAuditEventPolicy(){ var settings = new Dictionary<string, int>{ {''System'', -1}, {''Logon'', -1}, {''Object Access'', -1}, {''Privilige Use'', -1}, {''Detailed Tracking'', -1}, {''Policy Change'', -1}, {''Account Management'', -1}, {''Directory Service Access'', -1}, {''Account Logon'', -1}}; var lsaPolicyHandle = GetLsaPolicyHandle(); try{ IntPtr outBuffer; uint policyType = 2; var ntStatus = LsaQueryInformationPolicy(lsaPolicyHandle, policyType, out outBuffer); if (ntStatus == STATUS_OBJECT_NAME_NOT_FOUND){ return settings; } HandleLsaNtStatus(ntStatus); var auditEventsInfo = Marshal.PtrToStructure<POLICY_AUDIT_EVENTS_INFO>(outBuffer); var values = new int[auditEventsInfo.MaximumAuditEventCount]; Marshal.Copy(auditEventsInfo.EventAuditingOptions, values, 0, auditEventsInfo.MaximumAuditEventCount); var categoryIndex = settings.Keys.ToArray(); for (int i = 0; i < values.Length; i++){ settings[categoryIndex[i]] = values[i]; } return settings; } finally{ var ntStatus = LsaClose(lsaPolicyHandle); HandleLsaNtStatus(ntStatus); } } } } ';$previousEncoding = [Console]::OutputEncoding;[Console]::OutputEncoding = [Text.Encoding]::UTF8;Add-Type -TypeDefinition $code -Language CSharp;@([AuditEventPolicy.Collect]::GetAuditEventPolicy()) | ConvertTo-Json;[Console]::OutputEncoding = $previousEncoding;'<br/><b>day:</b> 18<br/><b>description:</b> A new process has been created<br/><b>device_hostname:</b> sjcd1pwadiap001<br/><b>device_hostname_raw:</b> SJCD1PWADIAP001.ihgint.global<br/><br/>"
  ]
}

Break Lines

{
  "signals": [
    "Signal time: 2024-08-18 12:19:06.056000+00:00\\nSignal Name: Sumo Logic SIEM Signal\\nRule: MATCH-S00198\\nStage: Execution\\nEntity Name: \\nbaseImage: C:\\\\Program Files\\\\Rapid7\\\\Insight Agent\\\\components\\\\endpoint_broker\\\\\\ncommandLine: PowerShell '$code = 'using System; using System.Linq; using System.Collections.Generic; using System.ComponentModel; using System.Runtime.InteropServices; using System.Security.Principal; using System.Text; namespace AuditEventPolicy { public class Collect { [DllImport(''advapi32.dll'', SetLastError = false)] private static extern uint LsaClose(IntPtr ObjectHandle); [DllImport(''advapi32.dll'', SetLastError = true)] private static extern uint LsaOpenPolicy( ref LSA_UNICODE_STRING SystemName, ref LSA_OBJECT_ATTRIBUTES ObjectAttributes, uint DesiredAccess, out IntPtr PolicyHandle); [DllImport(''advapi32.dll'', SetLastError = false)] private static extern uint LsaNtStatusToWinError(uint status); [DllImport(''advapi32.dll'')] private static extern uint LsaQueryInformationPolicy(IntPtr PolicyHandle, uint InformationClass, out IntPtr Buffer); internal const uint STATUS_SUCCESS = 0x00000000; internal const uint STATUS_ACCESS_DENIED = 0xC0000022; internal const uint STATUS_INSUFFICIENT_RESOURCES = 0xC000009A; internal const uint STATUS_INTERNAL_DB_ERROR = 0xC0000158; internal const uint STATUS_INVALID_HANDLE = 0xC0000008; internal const uint STATUS_INVALID_SERVER_STATE = 0xC00000DC; internal const uint STATUS_INVALID_PARAMETER = 0xC000000D; internal const uint STATUS_NO_SUCH_PRIVILEGE = 0xC0000060; internal const uint STATUS_OBJECT_NAME_NOT_FOUND = 0xC0000034; internal const uint STATUS_UNSUCCESSFUL = 0xC0000001; private static readonly Dictionary<uint, string> LsaNtStatusMessages = new Dictionary<uint, string>{ {STATUS_SUCCESS, ''The operation completed successfully.''}, {STATUS_ACCESS_DENIED, ''Access is denied.''}, {STATUS_INSUFFICIENT_RESOURCES, ''There are not enough system resources to complete the call.''}, {STATUS_INTERNAL_DB_ERROR, ''The LSA database contains an internal inconsistency.''}, {STATUS_INVALID_HANDLE, ''An object or RPC handle is not valid.''}, {STATUS_INVALID_SERVER_STATE, ''The LSA server is currently disabled.''}, {STATUS_INVALID_PARAMETER, ''One of the parameters is not valid.''}, {STATUS_NO_SUCH_PRIVILEGE, ''A specified privilege does not exist.''}, {STATUS_OBJECT_NAME_NOT_FOUND, ''An object in the LSA policy database was not found.''}, {STATUS_UNSUCCESSFUL, ''The requested operation was unsuccessful.''}}; [Flags]public enum LsaPolicyAccessRights : uint{ POLICY_VIEW_LOCAL_INFORMATION = 0x00000001, POLICY_VIEW_AUDIT_INFORMATION = 0x00000002, POLICY_GET_PRIVATE_INFORMATION = 0x00000004, POLICY_TRUST_ADMIN = 0x00000008, POLICY_CREATE_ACCOUNT = 0x00000010, POLICY_CREATE_SECRET = 0x00000020, POLICY_CREATE_PRIVILEGE = 0x00000040, POLICY_SET_DEFAULT_QUOTA_LIMITS = 0x00000080, POLICY_SET_AUDIT_REQUIREMENTS = 0x00000100, POLICY_AUDIT_LOG_ADMIN = 0x00000200, POLICY_SERVER_ADMIN = 0x00000400, POLICY_LOOKUP_NAMES = 0x00000800, POLICY_NOTIFICATION = 0x00001000, POLICY_ALL_ACCESS = POLICY_VIEW_LOCAL_INFORMATION |POLICY_VIEW_AUDIT_INFORMATION |POLICY_GET_PRIVATE_INFORMATION |POLICY_TRUST_ADMIN |POLICY_CREATE_ACCOUNT |POLICY_CREATE_SECRET |POLICY_CREATE_PRIVILEGE |POLICY_SET_DEFAULT_QUOTA_LIMITS |POLICY_SET_AUDIT_REQUIREMENTS |POLICY_AUDIT_LOG_ADMIN |POLICY_SERVER_ADMIN |POLICY_LOOKUP_NAMES |POLICY_NOTIFICATION} [StructLayout(LayoutKind.Sequential)]internal struct LSA_UNICODE_STRING{ internal ushort Length; internal ushort MaximumLength; internal IntPtr Buffer; } [StructLayout(LayoutKind.Sequential)]internal struct LSA_OBJECT_ATTRIBUTES{ internal uint Length; internal IntPtr RootDirectory; internal IntPtr ObjectName; internal uint Attributes; internal IntPtr SecurityDescriptor; internal IntPtr SecurityQualityOfService; } public struct POLICY_AUDIT_EVENTS_INFO{ public bool AuditingMode; public IntPtr EventAuditingOptions; public Int32 MaximumAuditEventCount; } private static void HandleLsaNtStatus(uint ntStatusCode){ if (ntStatusCode == STATUS_SUCCESS){ return; } var winErrorCode = (int)(LsaNtStatusToWinError(ntStatusCode)); if (LsaNtStatusMessages.ContainsKey(ntStatusCode)){ throw new Win32Exception(winErrorCode, LsaNtStatusMessages[ntStatusCode]); } throw new Win32Exception(winErrorCode); } private static IntPtr GetLsaPolicyHandle(){ var systemName = new LSA_UNICODE_STRING(); var objectAttributes = new LSA_OBJECT_ATTRIBUTES{ Length = 0, RootDirectory = IntPtr.Zero, ObjectName = IntPtr.Zero, Attributes = 0, SecurityDescriptor = IntPtr.Zero, SecurityQualityOfService = IntPtr.Zero}; IntPtr lsaPolicyHandle; var ntStatus = LsaOpenPolicy(ref systemName, ref objectAttributes, (uint)(LsaPolicyAccessRights.POLICY_ALL_ACCESS), out lsaPolicyHandle); HandleLsaNtStatus(ntStatus); return lsaPolicyHandle; } public static Dictionary<string, int> GetAuditEventPolicy(){ var settings = new Dictionary<string, int>{ {''System'', -1}, {''Logon'', -1}, {''Object Access'', -1}, {''Privilige Use'', -1}, {''Detailed Tracking'', -1}, {''Policy Change'', -1}, {''Account Management'', -1}, {''Directory Service Access'', -1}, {''Account Logon'', -1}}; var lsaPolicyHandle = GetLsaPolicyHandle(); try{ IntPtr outBuffer; uint policyType = 2; var ntStatus = LsaQueryInformationPolicy(lsaPolicyHandle, policyType, out outBuffer); if (ntStatus == STATUS_OBJECT_NAME_NOT_FOUND){ return settings; } HandleLsaNtStatus(ntStatus); var auditEventsInfo = Marshal.PtrToStructure<POLICY_AUDIT_EVENTS_INFO>(outBuffer); var values = new int[auditEventsInfo.MaximumAuditEventCount]; Marshal.Copy(auditEventsInfo.EventAuditingOptions, values, 0, auditEventsInfo.MaximumAuditEventCount); var categoryIndex = settings.Keys.ToArray(); for (int i = 0; i < values.Length; i++){ settings[categoryIndex[i]] = values[i]; } return settings; } finally{ var ntStatus = LsaClose(lsaPolicyHandle); HandleLsaNtStatus(ntStatus); } } } } ';$previousEncoding = [Console]::OutputEncoding;[Console]::OutputEncoding = [Text.Encoding]::UTF8;Add-Type -TypeDefinition $code -Language CSharp;@([AuditEventPolicy.Collect]::GetAuditEventPolicy()) | ConvertTo-Json;[Console]::OutputEncoding = $previousEncoding;'\\nday: 18\\ndescription: A new process has been created\\ndevice_hostname: sjcd1pwadiap001\\ndevice_hostname_raw: SJCD1PWADIAP001.ihgint.global\\n\\n"
  ]
}

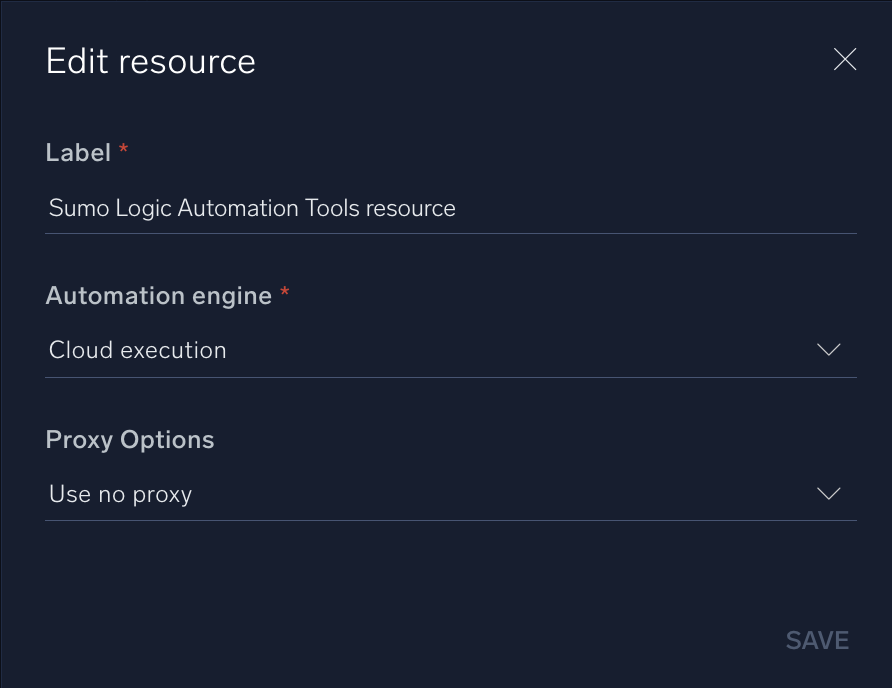

Configure Sumo Logic Automation Tools in Automation Service and Cloud SOAR

Before you can use the integration, you must configure it so that the vendor can communicate with Sumo Logic. For general guidance, see Configure Authentication for Integrations.

Sumo Logic Automation Tools executes without additional authentication.

Change log

Nov 11, 2024 - Beta version released.
